Shodan Book

RoutesDB

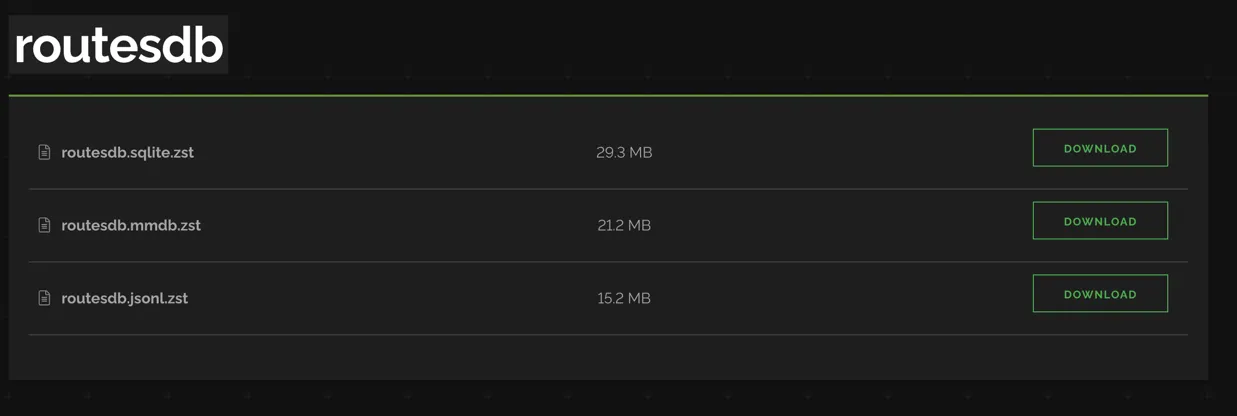

The RoutesDB dataset supports 3 types of file format- which were built based on the same internal dataset:

  • SQLite database (routesdb.sqlite.zst)
    This format intends for users want to lookup the prefixes by Autonomous System Number (ASN)
  • MaxmindDB (routesdb.mmdb.zst)
    Optimize for fast lookup by IP Address
  • Jsonl format (routesdb.jsonl.zst)
    Jsonl offers a user-friendly structure that allows for quick data inspection.

routesdb

Quickstart

Installation

  1. Install ZSTD compression:

    Ubuntu, Debian:

    Terminal window
    apt install zstd

    MacOSX:

    Terminal window
    brew install zstd

    Build from source: https://github.com/facebook/zstd/releases

  2. Install the Shodan command-line interface (CLI):

    Terminal window
    pip install --user shodan

  3. Initialize the CLI using your Shodan API key. You can get your API key from the Shodan account website:

    Terminal window
    shodan init API_KEY

  4. Download the file (choose the format you want to use): filetype can be either sqlite, mmdb or jsonl

    Terminal window
    export filetype=sqlite
    shodan data download routesdb routesdb.${filetype}.zst

  5. Rename and uncompress the file:

    Terminal window
    mv routesdb-routesdb.${filetype}.zst routesdb.${filetype}.zst && unzstd routesdb.${filetype}.zst

SQLite

For most systems, there will not be much to install as SQLite is readily available across platforms. You only need a way to download the InternetDB SQLite file and a cronjob to periodically update it.

The SQLite file can then be queried using Python or any programming language that supports SQLite:

import sqlite3


# Load the SQLite database
con = sqlite3.connect('routesdb.sqlite')
cur = con.cursor()


# Grab information about CloudFlare's ASN (13335)
cur.execute("SELECT prefix FROM route WHERE asn=?", (13335,))
info = cur.fetchall()
print(info)

MaxMindDB

On the other hand, MaxMindDB requires installation before using:

# pip install maxminddb
import maxminddb, sys, json


with maxminddb.open_database('routesdb.mmdb') as reader:
    ip = sys.argv[1] if len(sys.argv) > 1 else '1.1.1.1'
    record = reader.get(ip)
    print(json.dumps(record, indent=2, ensure_ascii=False))
Terminal window
python3 routesdb_query.py 1.1.1.1

Alternatively, you can use the command-line tool for quick mmdblookup

Installation guideline

Terminal window
mmdblookup --file routesdb.mmdb --ip 1.1.1.1

Jsonl

Jsonl is supported natively by the OS, so there is no installation required in order to read the file.

Sample Record

{
  "prefix": "1.1.1.0/24",
  "asn": 13335,
  "country": null,
  "netname": "APNIC-LABS",
  "source": "ARIN",
  "org": null,
  "mnt_by": null,
  "tech_c": null,
  "admin_c": null,
  "as_name": "CLOUDFLARENET-AS",
  "descr": [
    "Cloudflare, Inc.",
    "101 Townsend Street, San Francisco, California 94107, US",
    "+1-650-319-8930"
  ],
  "notify": null,
  "export_via": null,
  "import_via": null,
  "member_of": null,
  "mp_default": null,
  "changed": [
    "rir@cloudflare.com 20171005"
  ],
  "org_name": null
}
